Profile Applicability: Level 1


Description:

Real-time monitoring of API calls can be achieved by directing CloudTrail Logs to CloudWatch Logs and establishing corresponding metric filters and alarms. It is recommended that a metric filter and alarm be established for console logins that are not protected by multi-factor authentication (MFA).

MFA adds extra security because it requires users to provide unique authentication from an AWS-supported MFA mechanism in addition to their regular sign-in credentials when they access AWS websites or services.

Rationale:

Monitoring for single-factor console logins will increase visibility into accounts that are not protected by MFA. MFA is worked as an extra layer to protect our AWS resources, so we need to log metric filters and alarms which notify these users to log in through the console without MFA.

Impact:

If log filter metrics and the alarm is enabled for management console sign-in without MFA notified us, we can be easily notified that any user account or root account is not protected through MFA.

Default Value:

By default, console sign-in without MFA is not enabled.

Audit:

  1. Log in to the AWS Management Console and go to Cloudwatch dashboard at https://console.aws.amazon.com/cloudwatch/
  2. In the left navigation panel click on Log groups and select the log group you want to examine
  3. Go to the metric filter tab and Search for the metric filter related to console sign-in without MFA

If the particular metric filter is not found it means AWS Management Console sign-in requests made without using Multi-Factor Authentication protection are not monitored.


Via CLI:

To describe the Cloudwatch metrics

aws cloudwatch describe-metric-filters --log-group-name <value>


Remediation:

Pre-Requisite:

  • Cloud trails Must be enabled in your AWS account

  • You must contain SNS Topic to get notification

Implementation Steps:

  1. Log in to the AWS Management Console and go to Cloudwatch dashboard at https://console.aws.amazon.com/cloudwatch/

  2. In the left navigation, pane click on Log groups under Logs

  3. Select the log group for which you want to create a metric filter

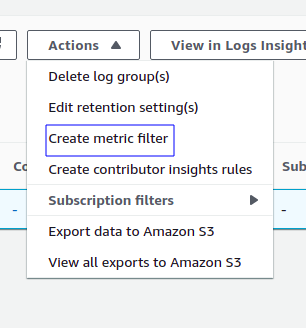

  4. Click on the Actions drop-down menu, select create a metric filter

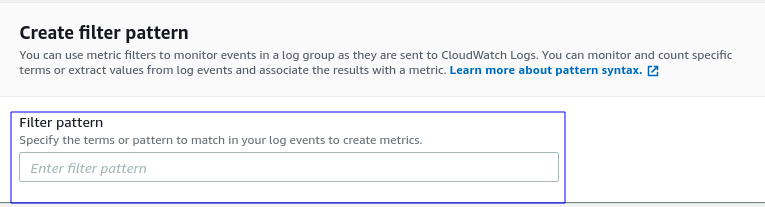

  5. In the Create metric filter page, we define the filter pattern as { ($.eventName = "ConsoleLogin") && ($.additionalEventData.MFAUsed != "Yes") } and then click on Next button

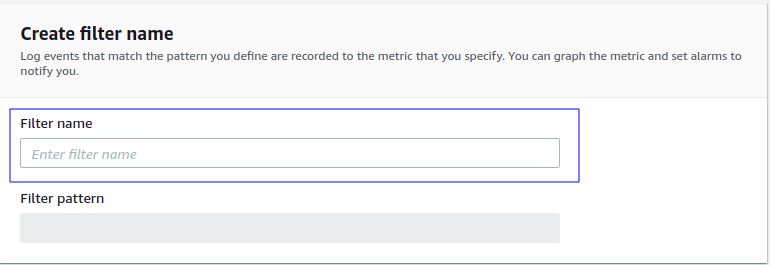

  6. In Assign metric page, under the Create filter name give the filter name as console_signin-withoutMFA

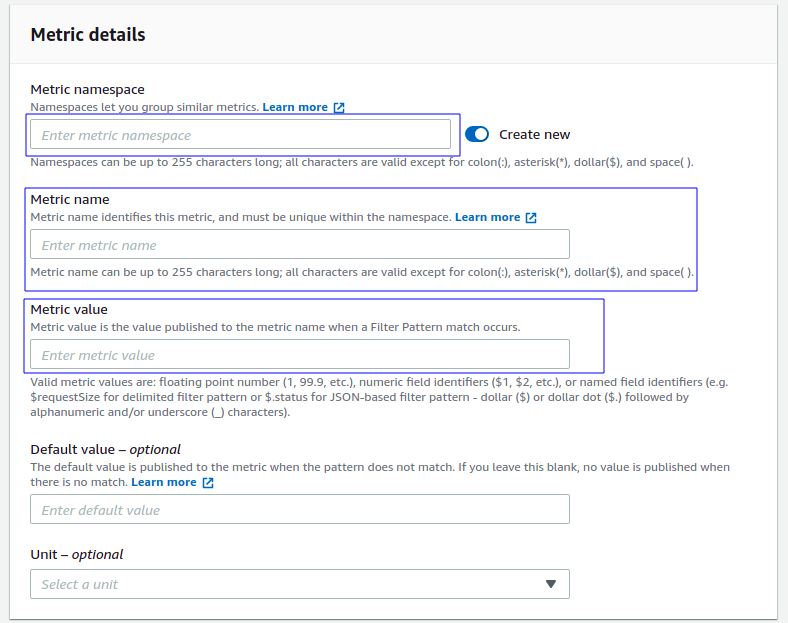

  7. Under the Metric Details section, provide the details required like Metric namespace, Metric name, metric value, and Default value(optional), and then click on the Next button

  8. Review the details provided and click on Create metric filter button to create it

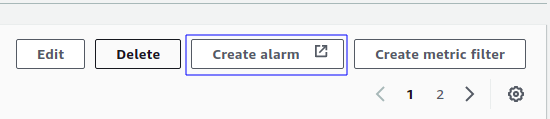

  9. After clicking on create metric filter You will see a metric filters page, Select the metric filter you have created and click on create alarm on the right side of the Metric filters section.

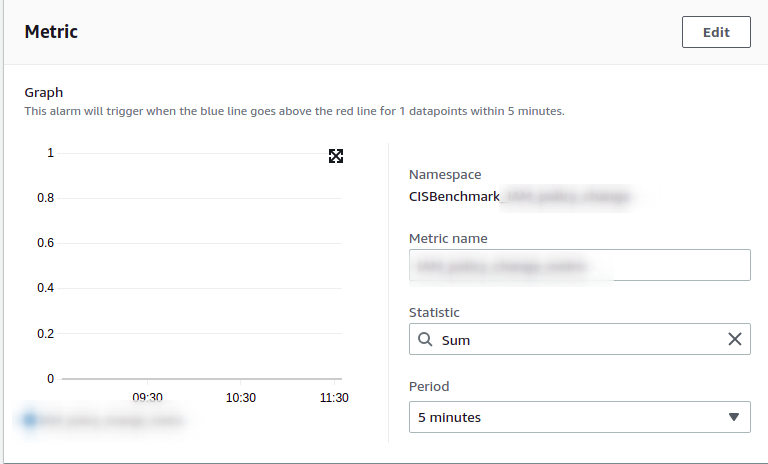

  10. After clicking on create alarm you will be redirected to the next tab to Create Alarm, define the following:-

    • Metric name (it automatically takes from the metric filter)

    • Statistic select Sum

    • Period as 5minutes

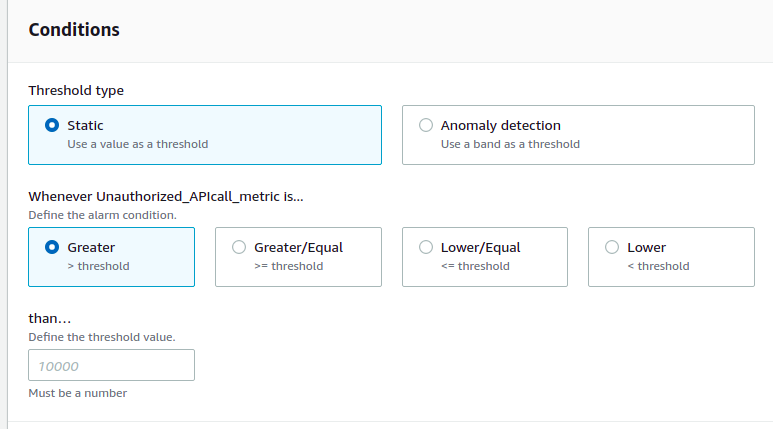

  11. In the conditions section select the Threshold type to Static, Define the alarm condition with a Greater(>) threshold and give the value of threshold as you defined in metric value then click on the Next button

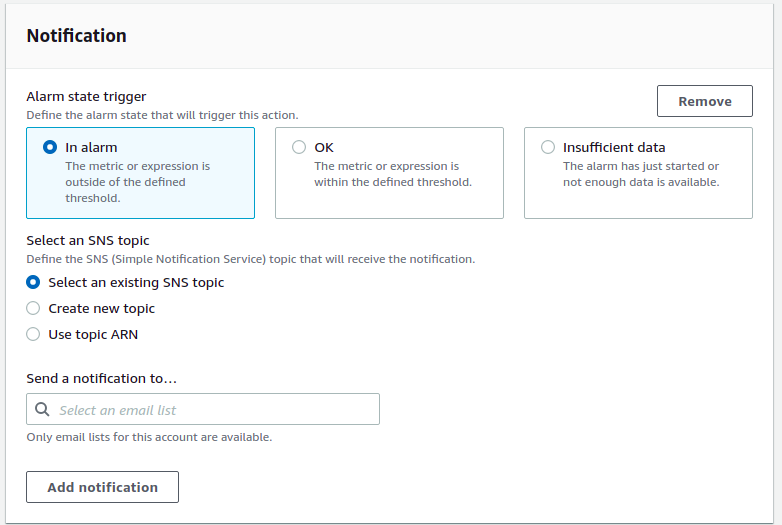

  12. Next is Configure actions in this choose Alarm state trigger option as In alarm, For SNS topic select SNS if exist or can create a new topic, click on NEXT

  13. Give the Name of Alarm e.g. ApiCallMonitoring and Alarm description(optional), click on the Next button.

  14. Review all the entered details and click on create Alarm


Via CLI:

To create metric filter

put-metric-filter
--log-group-name <value>
--filter-name <value>
--filter-pattern <value>
--metric-transformations <value>

To create Alarm

aws cloudwatch put-metric-alarm
--alarm-name <value>
--metric-name <value>
--statistic Sum --period 300 --threshold <value>
--comparison-operator <value>
--evaluation-periods 1 -namespace '<give the name space>'
--alarm-actions <sns_topic_arn>


Backout plan:

  1. Log in to the AWS Management Console and go to Cloudwatch dashboard at https://console.aws.amazon.com/cloudwatch/

  2. In the left navigation, pane click on Log groups under Logs

  3. Select the log group you want to modify, go to metric filter tab

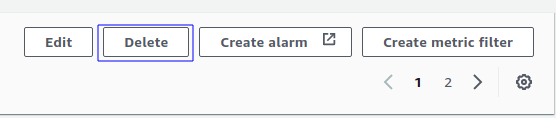

  4. Choose the metric filter you want to delete and click on Delete

  5. Click on In Alarms in the left navigation pane

  6. Select the alarm you want to delete, click on the Actions drop-down, and select Delete




Reference:

  1. https://docs.aws.amazon.com/AmazonCloudWatch/latest/monitoring/AlarmThatSendsEmail.html

  2. https://docs.aws.amazon.com/sns/latest/dg/SubscribeTopic.html

  3. https://docs.aws.amazon.com/cli/latest/userguide/install-cliv1.html


CIS Controls:

16 Account Monitoring and Control

Account Monitoring and Control
