Description: Upgrade an Amazon EC2 instance to a newer version. Upgrading to a newer instance family from t2.* to t3a.*, if Linux server


There are two methods to upgrade an earlier version of a Server running on an instance: in-place upgrade and migration (also called side-by-side upgrade). An in-place upgrade upgrades the operating system files while your personal settings and files are intact. A migration involves capturing settings, configurations, and data and porting these to a newer operating system on a fresh Amazon EC2 instance.


AWS Services:

Elastic Compute Cloud (EC2) is a web service that provides secure, resizable compute capacity in the cloud. It is designed to make web-scale cloud computing easier for developers. EC2's simple web service interface allows you to obtain and configure capacity with minimal friction.


AWS Elastic Beanstalk is an easy-to-use service for deploying and scaling web applications and services. You can simply upload your code and Elastic Beanstalk automatically handles the deployment, from capacity provisioning, load balancing, auto-scaling to application health monitoring. At the same time, you retain full control over the AWS resources powering your application and can access the underlying resources at any time.

Key Features:

  • Fast and simple to begin

  • Developer productivity

  • Impossible to outgrow

  • Complete resource control

Description of the finding:

AWS offers several sizes for every instance option, and for many users, the default behavior is to choose the largest size available. After all, you don’t know what capacity you might need in the future that incurs the cost for unused resources which drives up your monthly cost. AWS launches new instance types from time to time. The new generation instances are more affordable and have more processing power.


Recommendation:

Consider upgrading to a newer instance family from t2.* to t3a.*, if Linux server.

Use CloudWatch metrics to get a report of EC2 instances that are either idle or have low CPU utilization, basically which are driving up the cost by wasting the resources. Based on the report we can choose the appropriate instance type that suits our needs. As of now, we are going to upgrade the instance type from t2.* to t3a.* that can really lower your costs.

*Resource information Listed below*


Note: Coordinate with client to get Approval to Proceed to Remediate issue. THIS REMEDIATION WILL REQUIRE DOWNTIME.

Affected Service Dependencies:

  • EC2 instances
  • Elastic Load balancers
  • Elastic IP
  • Snapshots

Implementation Plan:

Pre Requisites:

  1. Should have a Linux instance that is t2.*

  2. Compute info needs to be identified; CPU/Memory/Storage

  3. Approval Required from the client for the downtime of the instance

  4. Check if there is a dependency on the IP address; or if Elastic IP is associated

  5. Make sure all the configurations are noted: KMS Keys; Network related configs; IAM roles

  6. Perform Snapshot of the t2.* instance as a backup

Current Status: (Check which Instance type is using currently)

  • Sign in to AWS console

  • Navigate to EC2 service https://console.aws.amazon.com/ec2/

  • Click on the Instances, under Instances in the left navigation pane

  • Select the instance that you want to examine

  • You can find the current instance type from the details shown by selecting the instance

Implementation steps:

  • Sign in to the AWS Management console

  • Navigate to EC2 service https://console.aws.amazon.com/ec2/

  • Click on the Instances, under Instances in the left navigation pane

  • Select the instance that you want to upgrade

  • Click on the Instance State on top and select stop Instance from the dropdown options (Note: we can not change the instance type when the instance is running)

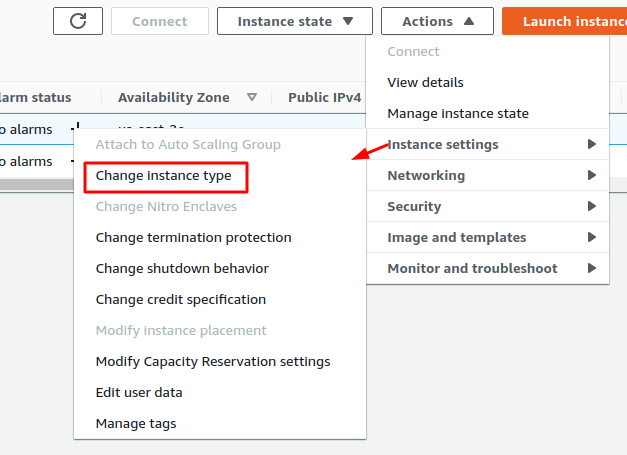

  • Click on the Actions button on the top and select the Instance settings from the dropdown options

  • Click on the Change instance type

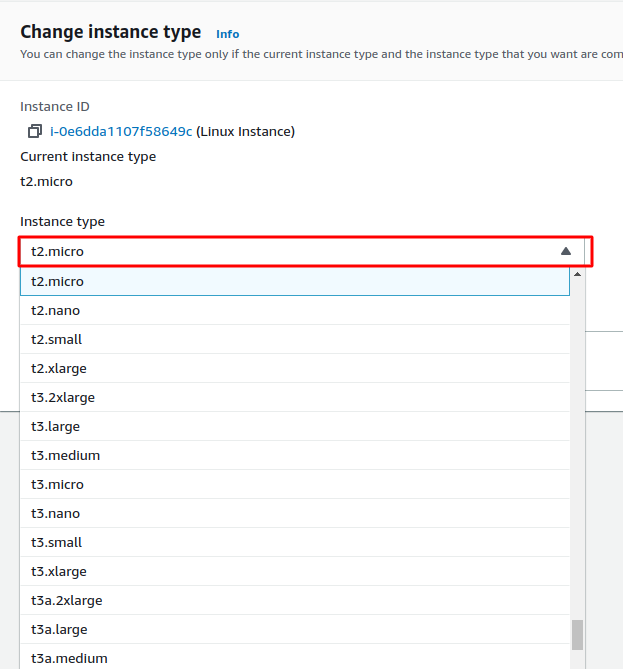

  • Change instance type window will open and then click on the down arrow, it will show all the instances types available

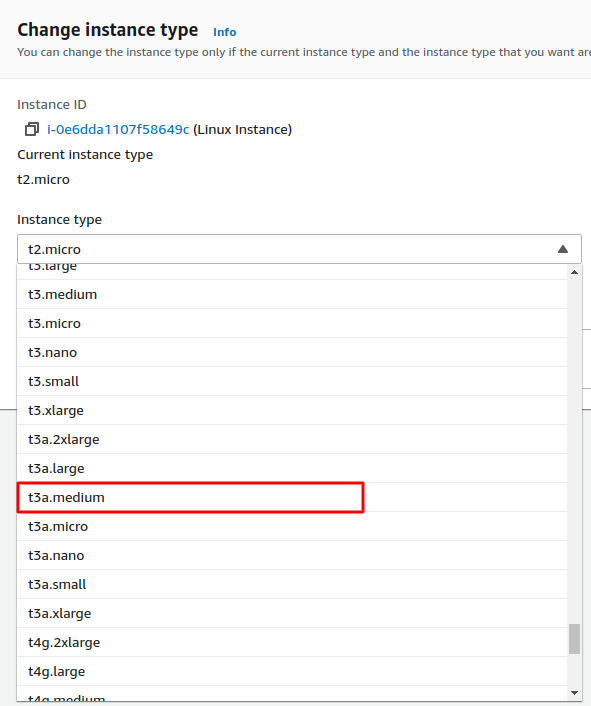

  • Select the t3a Instance type from the options shown

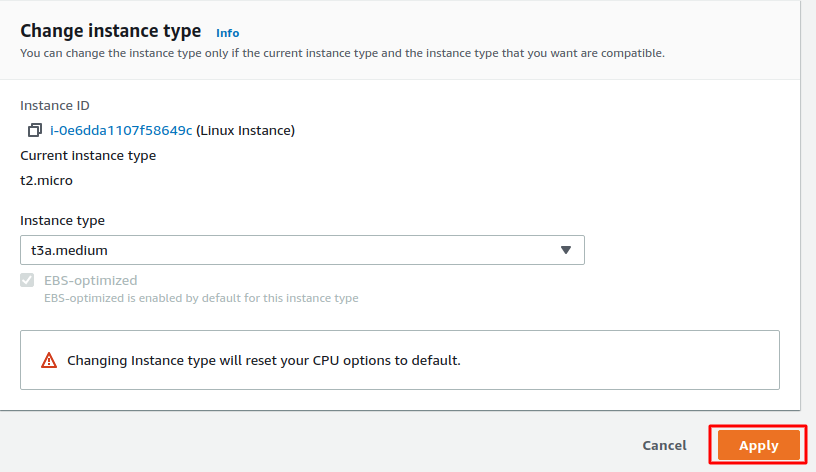

  • Click on Apply


Status after Implementation:

The instance type column of the particular EC2 instance that you changed has to show the type that you selected i.e, t3a.  Follow the steps of the current status to check. Make sure the instance type that you changed(t3a) is shown in the instance type column.


Back Out Plan: (If you want to rollback to the previous type)

If you want to roll back to the previous instance type at any moment, just follow the steps that you followed in the Implementation steps section, and then in the step where we want to choose instance type, select t2.* type instance for the rollback or follow the steps below

Perform restoration of the volume from the snapshot

  • Sign in to AWS console; Navigate to EC2 service https://console.aws.amazon.com/ec2/

  • Click on snapshots under Elastic Block Storage, in the left navigation pane

  • Select the snapshot that needs to restore from the list of snapshots available in your account and click on the Actions dropdown button and then click on create Volume

Note: Keep the Snapshot for 5 business days before discarding it.


Total Cost Savings(Yearly)

Pricing examples

Product Details - t2.*

t2 instances are a low-cost, general-purpose instance type that provides a baseline level of CPU performance with the ability to burst above the baseline when needed. With On-Demand Instance prices starting at $0.0058 per hour

Name

vCPUs

RAM (GiB)

CPU Credits/hr

On-Demand Price/hr*

1-yr Reserved Instance Effective Hourly*

3-yr Reserved Instance Effective Hourly*

t2.nano

1

0.5

3

$0.0058

$0.003

$0.002

t2.micro

1

1.0

6

$0.0116

$0.007

$0.005

t2.small

1

2.0

12

$0.023

$0.014

$0.009

t2.medium

2

4.0

24

$0.0464

$0.031

$0.021

t2.large

2

8.0

36

$0.0928

$0.055

$0.037

t2.xlarge

4

16.0

54

$0.1856

$0.110

$0.074

t2.2xlarge

8

32.0

81

$0.3712

$0.219

$0.148

*Prices shown are for Linux/Unix in US East (Northern Virginia) AWS Region. Prices for 1-year and 3-year reserved instances are for "Partial Upfront" payment options or "No upfront" for instances without the Partial Upfront option. For full pricing details, see the Amazon EC2 pricing page.

Product Details - t3a.* instances

The t3a.* instances feature AMD EPYC, 7000 series processors, with an all-core turbo clock speed of 2.5 GHz. The AMD-based instances provide additional options for customers that do not fully utilize the compute resources and can benefit from a cost savings of 10%.

$Name

vCPUs

Memory (GiB)

Baseline Performance/vCPU

CPU Credits earned/hr

Network burst bandwidth (Gbps)

EBS burst bandwidth (Mbps)

On-Demand Price/hr*

1-yr Reserved Instance Effective Hourly*

3-yr Reserved Instance Effective Hourly*

t3a.nano

2

0.5

5%

6

5

Up to 2,085

$0.0047

$0.0028

$0.0019

t3a.micro

2

1.0

10%

12

5

Up to 2,085

$0.0094

$0.0056

$0.0038

t3a.small

2

2.0

20%

24

5

Up to 2,085

$0.0188

$0.0112

$0.0075

t3a.medium

2

4.0

20%

24

5

Up to 2,085

$0.0376

$0.0224

$0.0150

t3a.large

2

8.0

30%

36

5

Up to 2,780

$0.0752

$0.0449

$0.0301

t3a.xlarge

4

16.0

40%

96

5

Up to 2,780

$0.1504

$0.0898

$0.0602

t3a.2xlarge

8

32.0

40%

192

5

Up to 2,780

$0.3008

$0.1796

$0.1203



Reference:

https://docs.aws.amazon.com/awsaccountbilling/latest/aboutv2/ce-rightsizing.html

https://aws.amazon.com/ec2/instance-types/
