Description:
The Azure Bastion service allows secure remote access to Azure Virtual Machines over the Internet without exposing remote access protocol ports and services directly to the Internet. The Azure Bastion service provides this access using TLS over 443/TCP, and
subscribes to hardened configurations within an organization's Azure Active Directory service.
Rationale:
The Azure Bastion service allows organizations a more secure means of accessing Azure Virtual Machines over the Internet without assigning public IP addresses to those Virtual Machines. The Azure Bastion service provides Remote Desktop Protocol (RDP)
and Secure Shell (SSH) access to Virtual Machines using TLS within a web browser, thus preventing organizations from opening up 3389/TCP and 22/TCP to the Internet on Azure Virtual Machines. Additional benefits of the Bastion service includes Multi-Factor
Authentication, Conditional Access Policies, and any other hardening measures configured within Azure Active Directory using a central point of access.
Impact:
The Azure Bastion service incurs additional costs and requires a specific virtual network configuration. The Standard tier offers additional configuration options compared to the Basic tier and may incur additional costs for those added features.
Audit:
From Azure Portal
1. Click on Bastions
2. Ensure there is at least one Bastion host listed under the Name column
From Azure CLI
Note: The Azure CLI network bastion module is in Preview as of this writing
az network bastion list --subscription <subscription ID>Ensure the output of the above command is not empty.
From PowerShell
Retrieve the Bastion host(s) information for a specific Resource Group
Get-AzBastion -ResourceGroupName <resource group name>Ensure the output of the above command is not empty.
Remediation:
From Azure Portal:

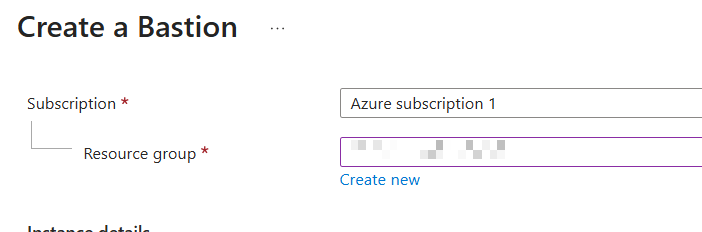

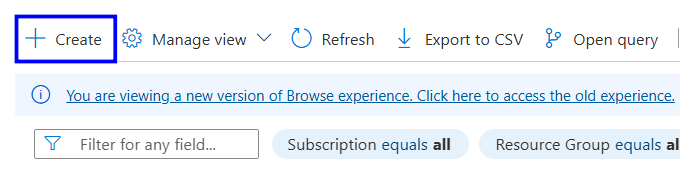

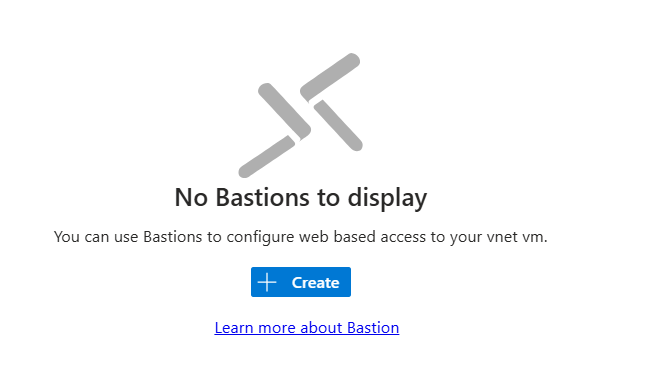

1. Click on Bastions
2. Select the Subscription
3. Select the Resource group
4. Type a Name for the new Bastion host
5. Select a Region
6. Choose Standard next to Tier
7. Use the slider to set the Instance count
8. Select the Virtual network or Create new
9. Select the Subnet named AzureBastionSubnet. Create a Subnet named AzureBastionSubnet using a /26 CIDR range if it doesn't already exist.
10.Selct the appropriate Public IP address option.
11.If Create new is selected for the Public IP address option, provide a Public IP address name.
12.If Use existing is selected for Public IP address option, select an IP address from Choose public IP address
13.Click Next: Tags >
14.Configure the appropriate Tags
15.Click Next: Advanced >
16.Select the appropriate Advanced options
17.Click Next: Review + create >
18.Click Create
From Azure CLI
az network bastion create --location <location> --name <name of bastion host>
--public-ip-address <public IP address name or ID> --resource-group <resource
group name or ID> --vnet-name <virtual network containing subnet called
"AzureBastionSubnet"> --scale-units <integer> --sku Standard [--disable-copypaste true|false]
[--enable-ip-connect true|false] [--enable-tunnelingtrue|false]From PowerShell
Create the appropriate Virtual network settings and Public IP Address settings.
$subnetName = "AzureBastionSubnet"
$subnet = New-AzVirtualNetworkSubnetConfig -Name $subnetName -AddressPrefix
<IP address range in CIDR notation making sure to use a /26>
$virtualNet = New-AzVirtualNetwork -Name <virtual network name> -
ResourceGroupName <resource group name> -Location <location> -AddressPrefix
<IP address range in CIDR notation> -Subnet $subnet
$publicip = New-AzPublicIpAddress -ResourceGroupName <resource group name> -
Name <public IP address name> -Location <location> -AllocationMethod Dynamic
-Sku StandardCreate the Azure Bastion service using the information within the created variables from above.
New-AzBastion -ResourceGroupName <resource group name> -Name <bastion name> -
PublicIpAddress $publicip -VirtualNetwork $virtualNet -Sku "Standard" - ScaleUnit <integer>Default Value:
By default, the Azure Bastion service is not configured.
References:
1. https://learn.microsoft.com/en-us/azure/bastion/bastion-overview#sku
2. https://learn.microsoft.com/en-us/powershell/module/az.network/getazbastion?view=azps-9.2.0
3. https://learn.microsoft.com/en-us/cli/azure/network/bastion?view=azure-cli-latest
