Description:
Enable AuditEvent logging for key vault instances to ensure interactions with key vaults
are logged and available.
Rationale:
Monitoring how and when key vaults are accessed, and by whom, enables an audit trail of interactions with confidential information, keys, and certificates managed by Azure Keyvault. Enabling logging for Key Vault saves information in an Azure storage account
which the user provides. This creates a new container named insights-logs-auditevent automatically for the specified storage account. This same storage account can be used for collecting logs for multiple key vaults.
Audit:
From Azure Portal
1. Go to Key vaults
2. For each Key vault
3. Go to Diagnostic settings
4. Click on Edit Settings
5. Ensure that Archive to a storage account is Enabled
6. Ensure that AuditEvent is checked, and the retention days is set to 180 days or as appropriate
From Azure CLI
List all key vaults
az keyvault listFor each keyvault id
az monitor diagnostic-settings list --resource <id>Ensure that storageAccountId is set as appropriate. Also, ensure that category and days are set. One of the sample outputs is as below.
"logs": [
{
"category": "AuditEvent",
"enabled": true,
"retentionPolicy": {
"days": 180,
"enabled": true
}
}
]From PowerShell
List the key vault(s) in the subscription
Get-AzKeyVaultFor each key vault, run the following:
Get-AzDiagnosticSetting -ResourceId <key vault resource ID>Ensure that StorageAccountId, ServiceBusRuleId, MarketplacePartnerId, or WorkspaceId is set as appropriate. Also, ensure that enabled is set to true, and that category and days are set under the Log heading.
Remediation:
From Azure Portal
1. Go to Key vaults
2. Select a Key vault

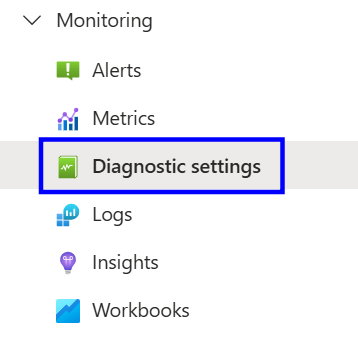

3. Select Diagnostic settings

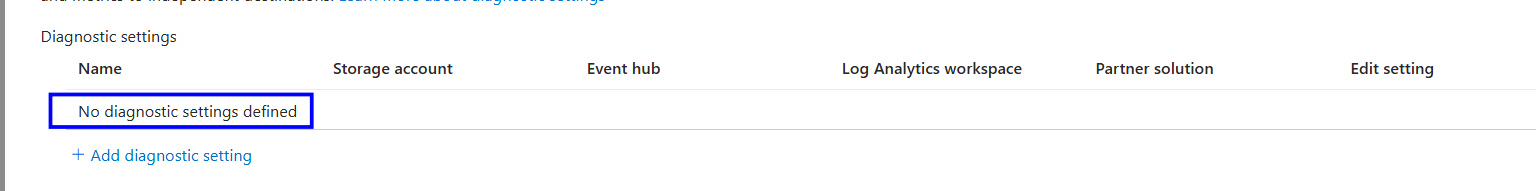

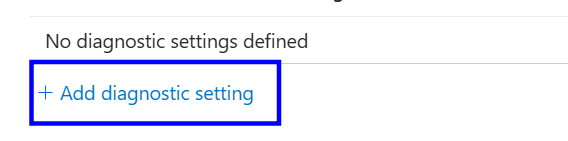

4. Click on Edit setting against an existing diagnostic setting, or Add diagnostic setting
5. If creating a new diagnostic setting, provide a name

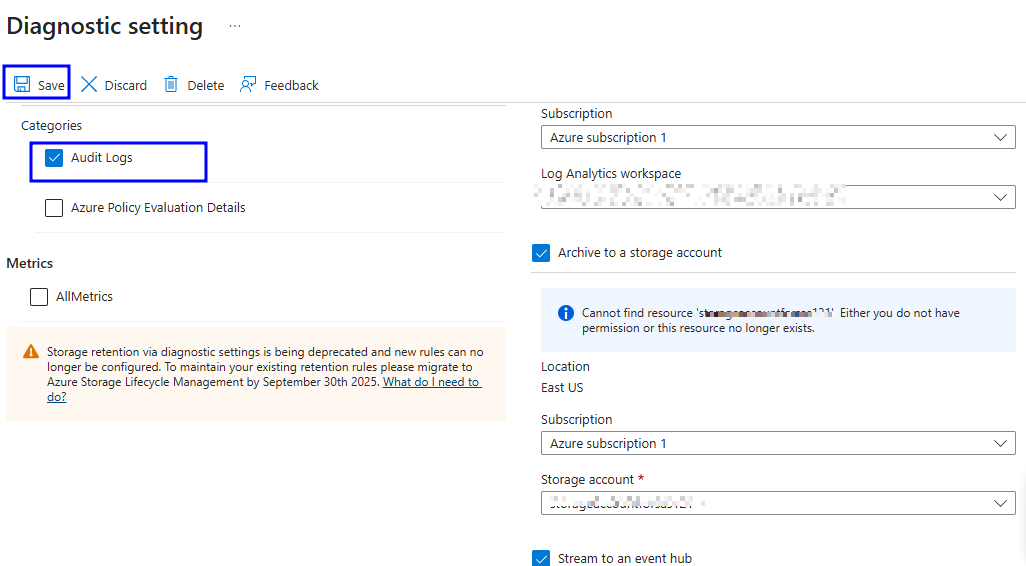

6. Check Archive to a storage account
7. Under Categories, check Audit Logs
8. Set an appropriate value for Retention (days)
9. Click Save
From Azure CLI
To update an existing Diagnostic Settings
az monitor diagnostic-settings update --name "<diagnostics settings name>" --
resource <key vault resource ID> --set retentionPolicy.days=90To create a new Diagnostic Settings
az monitor diagnostic-settings create --name <diagnostic settings name> --
resource <key vault resource ID> --logs
"[{category:AuditEvents,enabled:true,retentionpolicy:{enabled:true,days:180}}]" --metrics
"[{category:AllMetrics,enabled:true,retentionpolicy:{enabled:true,days:180}}]" <[--event-hub <event hub ID> --event-hubrule <event hub auth rule ID> | --storage-account <storage account ID> |--
workspace <log analytics workspace ID> | --marketplace-partner-id <full
resource ID of third-party solution>]>From PowerShell
Create the Log settings object
$logSettings = @()
$logSettings += New-AzDiagnosticSettingLogSettingsObject -Enabled $true -
RetentionPolicyDay 180 -RetentionPolicyEnabled $true -Category AuditEventCreate the Metric settings object
$metricSettings = @()
$metricSettings += New-AzDiagnosticSettingMetricSettingsObject -Enabled $true
-RetentionPolicyDay 180 -RetentionPolicyEnabled $true -Category AllMetricsCreate the Diagnostic Settings for each Key Vault
New-AzDiagnosticSetting -Name "<diagnostic setting name>" -ResourceId <key
vault resource ID> -Log $logSettings -Metric $metricSettings [-
StorageAccountId <storage account ID> | -EventHubName <event hub name> -
EventHubAuthorizationRuleId <event hub auth rule ID> | -WorkSpaceId <log
analytics workspace ID> | -MarketPlacePartnerId <full resource ID for thirdparty solution>]Default Value:
By default, Diagnostic AuditEvent logging is not enabled for Key Vault instances.
References:
1. https://docs.microsoft.com/en-us/azure/key-vault/general/howto-logging
