Description:
Resource Logs capture activity to the data access plane while the Activity log is a subscription-level log for the control plane. Resource-level diagnostic logs provide insight into operations that were performed within that resource itself; for example,
reading or updating a secret from a Key Vault. Currently, 95 Azure resources support Azure Monitoring (See the more information section for a complete list), including Network Security Groups, Load Balancers, Key Vault, AD, Logic Apps, and CosmosDB.
The content of these logs varies by resource type. A number of back-end services were not configured to log and store Resource Logs for
certain activities or for a sufficient length. It is crucial that monitoring is correctly configured to log all relevant activities and retain those logs for a sufficient length of time. Given that the mean time to detection in an enterprise is 240 days, a minimum retention period of two years is recommended.
Rationale:
A lack of monitoring reduces the visibility into the data plane, and therefore an organization's ability to detect reconnaissance, authorization attempts or other malicious activity. Unlike Activity Logs, Resource Logs are not enabled by default. Specifically,
without monitoring it would be impossible to tell which entities had accessed a data store that was breached. In addition, alerts for failed attempts to access APIs for Web Services or Databases are only possible when logging is enabled.
Impact:
Costs for monitoring varies with Log Volume. Not every resource needs to have logging
enabled. It is important to determine the security classification of the data being
processed by the given resource and adjust the logging based on which events need to
be tracked. This is typically determined by governance and compliance requirements.
Audit:
From Azure Portal

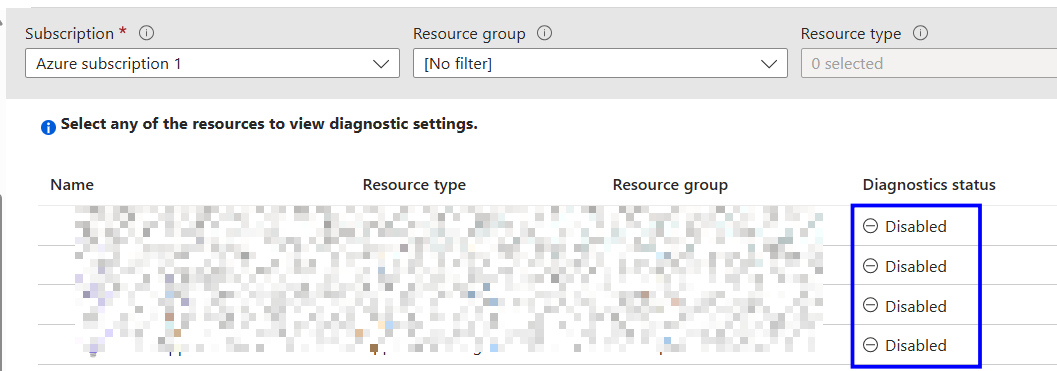

The specific steps for configuring resources within the Azure console vary depending on resource, but typically the steps are:
1. Go to the resource
2. Click on Diagnostic settings

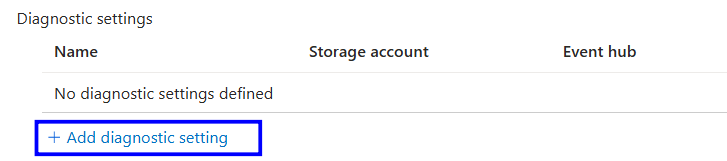

3. In the blade that appears, click "Add diagnostic setting"
4. Configure the diagnostic settings
5. Click on Save
From Azure CLI
List all resources for a subscription
az resource list --subscription <subscription id>For each resource run the following
az monitor diagnostic-settings list --resource <resource ID>An empty result means a diagnostic settings is not configured for that resource. An error message means a diagnostic settings is not supported for that resource.
From PowerShell
Get a list of resources in a subscription context and store in a variable
$resources = Get-AzResourceLoop through each resource to determine if a diagnostic setting is configured or not.
foreach ($resource in $resources) {$diagnosticSetting = GetAzDiagnosticSetting -ResourceId $resource.id -ErrorAction "SilentlyContinue";
if ([string]::IsNullOrEmpty($diagnosticSetting)) {$message = "Diagnostic
Settings not configured for resource: " + $resource.Name;Write-Output
$message}else{$diagnosticSetting}}A result of Diagnostic Settings not configured for resource: <resource name>
means a diagnostic settings is not configured for that resource. Otherwise, the output
of the above command will show configured Diagnostic Settings for a resource.
Remediation:
Azure Subscriptions should log every access and operation for all resources. Logs should be sent to Storage and a Log Analytics Workspace or equivalent third-party system. Logs should be kept in readily-accessible storage for a minimum of one year,
and then moved to inexpensive cold storage for a duration of time as necessary. If retention policies are set but storing logs in a Storage Account is disabled (for example, if only Event Hubs or Log Analytics options are selected), the retention policies have no
effect. Enable all monitoring at first, and then be more aggressive moving data to cold storage if the volume of data becomes a cost concern.
From Azure Portal
The specific steps for configuring resources within the Azure console vary depending on resource, but typically the steps are:
1. Go to the resource
2. Click on Diagnostic settings
3. In the blade that appears, click "Add diagnostic setting"

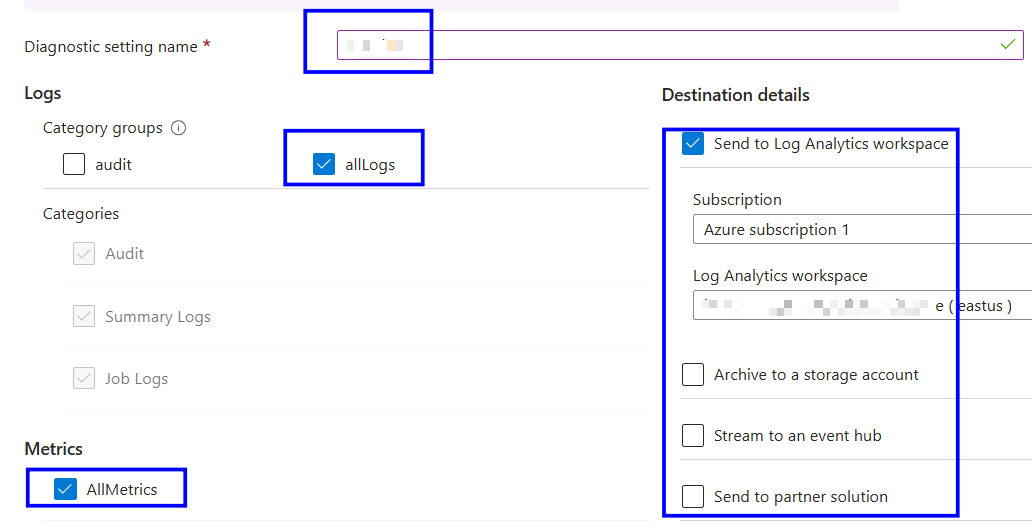

4. Configure the diagnostic settings
5. Click on Save
From Azure CLI
For each resource, run the following making sure to use a resource appropriate JSON encoded category for the --logs option.
az monitor diagnostic-settings create --name <diagnostic settings name> --
resource <resource ID> --logs "[{category:<resource specific
category>,enabled:true,rentention-policy:{enabled:true,days:180}}]" --metrics
"[{category:AllMetrics,enabled:true,retentionpolicy:{enabled:true,days:180}}]" <[--event-hub <event hub ID> --event-hubrule <event hub auth rule ID> | --storage-account <storage account ID> |--
workspace <log analytics workspace ID> | --marketplace-partner-id <full
resource ID of third-party solution>]>From PowerShell
Create the log settings object
$logSettings = @()
$logSettings += New-AzDiagnosticSettingLogSettingsObject -Enabled $true -
RetentionPolicyDay 180 -RetentionPolicyEnabled $true -Category <resource
specific category>
$logSettings += New-AzDiagnosticSettingLogSettingsObject -Enabled $true -
RetentionPolicyDay 180 -RetentionPolicyEnabled $true -Category <resource
specific category number 2>Create the metric settings object
$metricSettings = @()
$metricSettings += New-AzDiagnosticSettingMetricSettingsObject -Enabled $true
-RetentionPolicyDay 180 -RetentionPolicyEnabled $true -Category AllMetricsCreate the diagnostic setting for a specific resource
New-AzDiagnosticSetting -Name "<diagnostic settings name>" -ResourceId <resource ID> -Log $logSettings -Metric $metricSettingsDefault Value:
By default, Azure Monitor Resource Logs are 'Disabled' for all resources.
References:
3. https://docs.microsoft.com/en-us/azure/azure-monitor/essentials/monitor-azureresource
5. Logs and Audit - Fundamentals: https://docs.microsoft.com/enus/azure/security/fundamentals/log-audit
6. Collecting Logs: https://docs.microsoft.com/en-us/azure/azuremonitor/platform/collect-activity-logs
7. Key Vault Logging: https://docs.microsoft.com/en-us/azure/key-vault/key-vaultlogging
11.Diagnostic Logs for CDNs: https://docs.microsoft.com/en-us/azure/cdn/cdnazure-diagnostic-logs
