2.11 Ensure Log Metric Filter and Alerts Exist for SQL Instance Configuration Changes (Automated)

Profile Applicability:

Level 2

Description:

Establishing a log metric filter and alert for SQL instance configuration changes is recommended. This ensures that any changes, including critical misconfigurations, are monitored and addressed promptly.

Rationale:

Monitoring configuration changes in Cloud SQL instances can help mitigate security risks and maintain service reliability. Key configuration options, such as enabling auto-backups, high availability, and managing network authorizations, directly impact the security and performance of SQL instances. Detecting misconfigurations early ensures quick resolution and protects the organization’s data integrity.

Impact:

Enabling logging may incur additional costs for log storage and processing, particularly for organizations with high activity levels.

Default Value:

No log metric or alert policy is configured by default for SQL instance configuration changes.

Audit Steps:

Using Google Cloud Console:

1. Verify Log Metric Configuration:

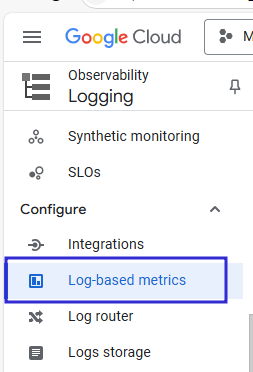

   • Navigate to Logs-based Metrics.

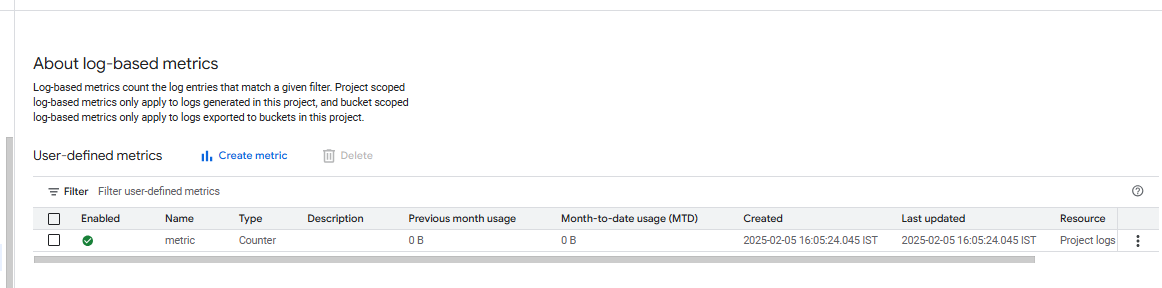

• Under User-defined Metrics, ensure there is a metric with the filter:

protoPayload.methodName="cloudsql.instances.update"

2. Verify Alert Policy Configuration:

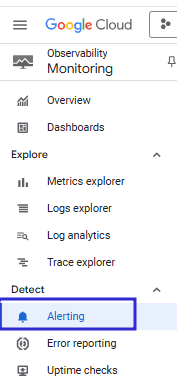

   • Navigate to Alerting.

• Ensure an alert policy exists for the log metric with the following conditions:

  • Condition: Triggers for any configuration change.

  • Threshold: Greater than 0.

• Verify notification channels are configured appropriately.

Using Google Cloud CLI:

1. Verify Log Metric Configuration:

• List all log metrics:

gcloud logging metrics list --format json

• Confirm there is a metric with the filter:

protoPayload.methodName="cloudsql.instances.update"

2. Verify Alert Policy Configuration:

• List alerting policies:

gcloud alpha monitoring policies list --format json

• Confirm a policy exists where:

• Filter: Matches the metric.

• Enabled: true.

Remediation Steps:

Using Google Cloud Console:

1. Create a Log Metric:

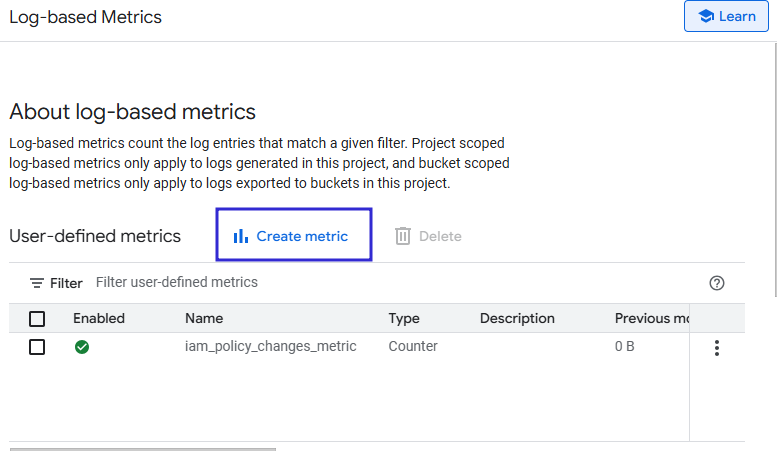

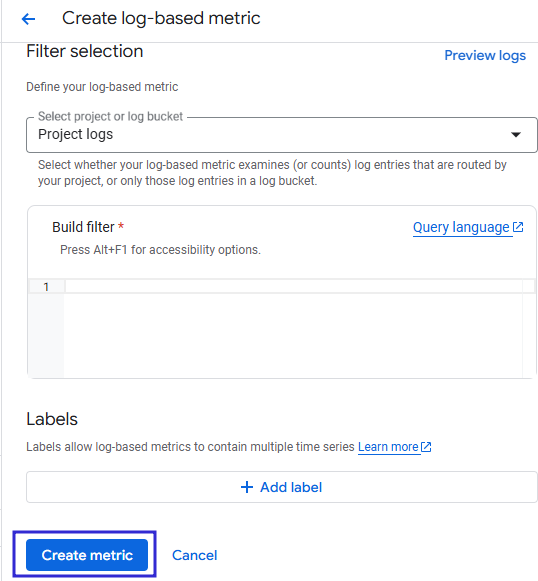

   • Navigate to Logs-based Metrics and click CREATE METRIC.

• Configure the metric:

Filter:

protoPayload.methodName="cloudsql.instances.update"

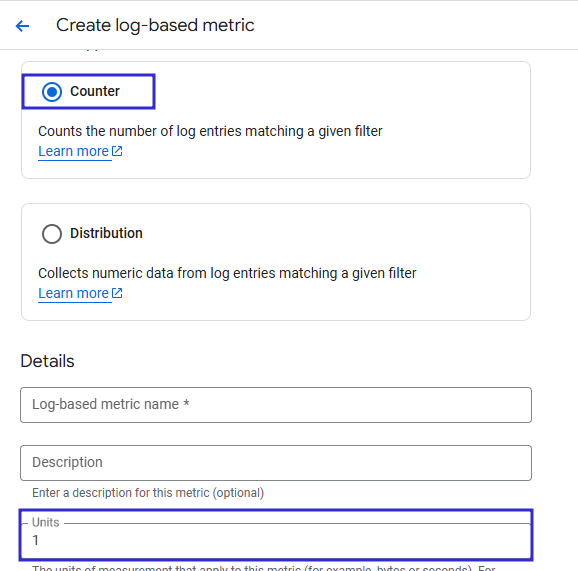

• Type: Counter.

• Units: 1 (default).

• Click Create Metric.

2. Create an Alert Policy:

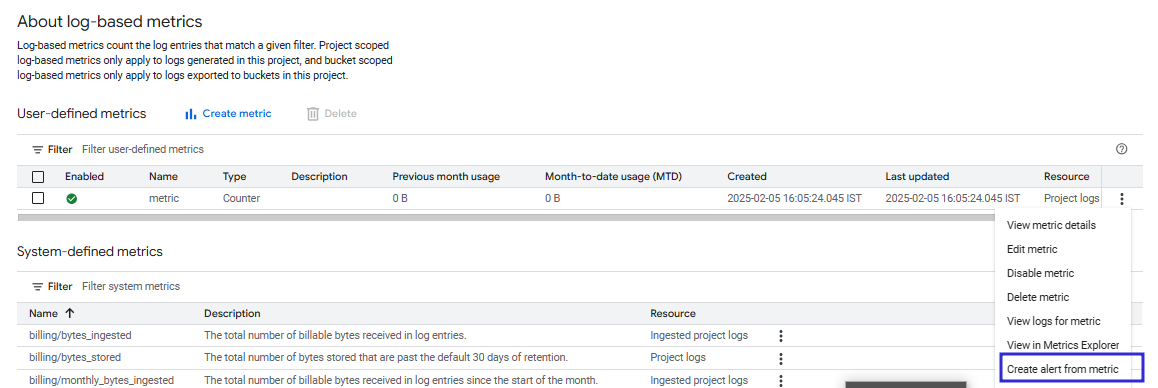

   • Locate the new metric under User-defined Metrics.

• Click the three-dot menu and select Create alert from Metric.

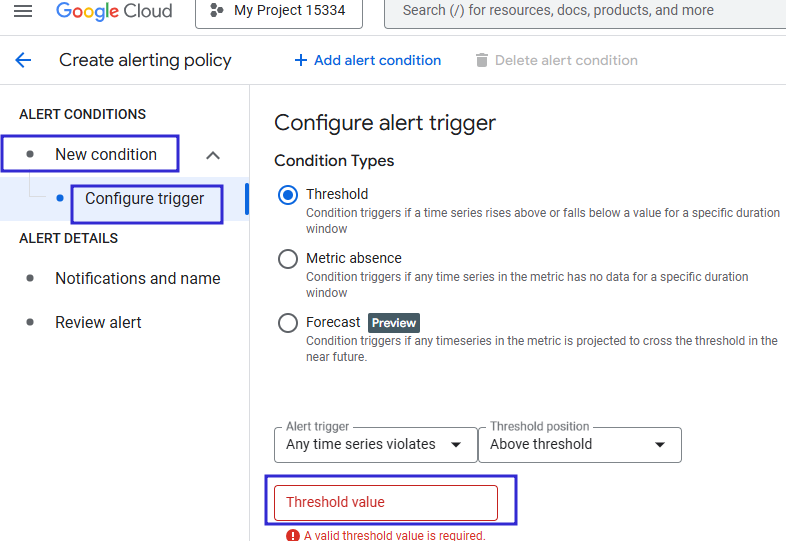

• Configure the alert policy:

  • Condition:

    • Aggregator: Count.

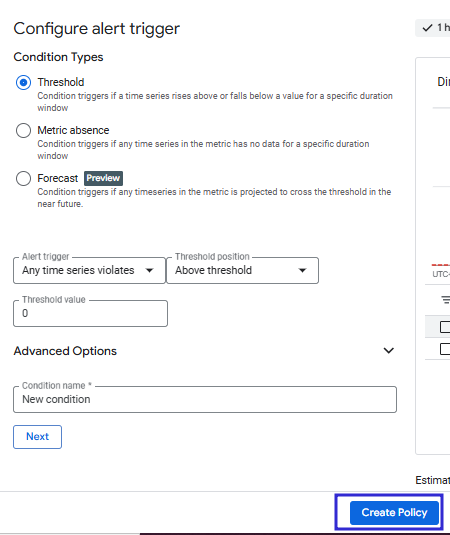

    • Threshold: Greater than 0.

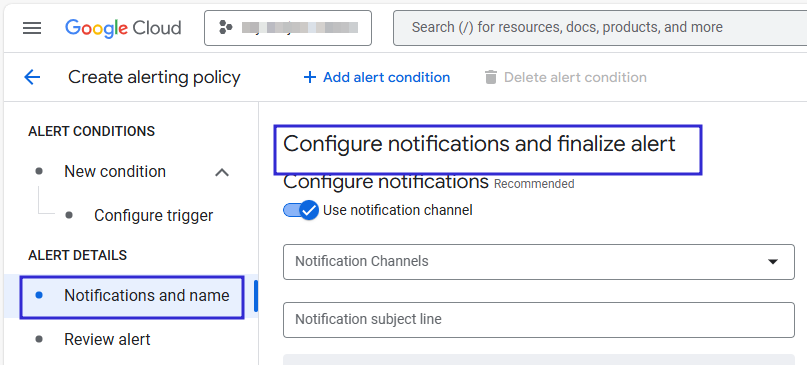

  • Configure notification channels as needed.

• Save the policy.

Using Google Cloud CLI:

Create a Log Metric:

gcloud logging metrics create <metric-name> \
  --description="Monitor SQL instance configuration changes" \
  --log-filter="protoPayload.methodName='cloudsql.instances.update'"

Create an Alert Policy:

gcloud alpha monitoring policies create \
  --display-name="<policy-name>" \
  --conditions="<condition-config>" \
  --notification-channels="<notification-channels>"

References:

1. Logs-Based Metrics Documentation

2. Custom Metrics in Monitoring

3. Alerts in Monitoring

4. Cloud Logging CLI Reference

5. Cloud SQL MySQL Documentation

6. Cloud SQL PostgreSQL Documentation

CIS Controls:
