Profile Applicability:
Level 2
Description:
When using Classic Load Balancers (CLB) with SSL/HTTPS listeners, it is recommended to use AWS Certificate Manager (ACM) to provision and manage SSL/TLS certificates. ACM provides automatic renewal, centralized management, and integration with AWS services, ensuring the highest security standards for SSL/TLS certificates.
Using ACM reduces the risks associated with managing certificates manually, such as expired certificates or incorrect configurations.
Rationale:
Automatic Certificate Renewal: ACM automatically renews certificates, reducing the risk of downtime due to expired certificates.
Improved Security: ACM certificates are issued by trusted Certificate Authorities (CAs) and meet stringent security standards.
Simplified Management: Certificates are centrally managed and integrated with AWS services, streamlining deployments and updates.
Compliance: Ensures compliance with security policies and industry standards.
Impact:
Pros:
Simplifies certificate management.
Ensures automatic certificate renewals, reducing manual effort.
Enhances security by using ACM-provided, trusted certificates.
Cons:
Migrating from manually uploaded certificates to ACM may require downtime if not carefully planned.
ACM only supports public certificates for domain names validated through DNS or email.
Default Value:
By default, Classic Load Balancers allow using both ACM-managed and manually uploaded certificates for SSL/HTTPS listeners.
Pre-Requisite:
IAM Permissions:
elasticloadbalancing:DescribeLoadBalancers
elasticloadbalancing:DescribeLoadBalancerListeners
acm:ListCertificates
acm:DescribeCertificate
AWS CLI installed and configured
Remediation:
Test Plan:
Using AWS Console:
Sign in to the AWS Management Console.

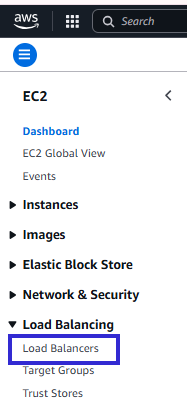

Navigate to EC2 Dashboard → Load Balancers.
Select Classic Load Balancers from the left-hand panel.
For each Classic Load Balancer with HTTPS/SSL listeners:

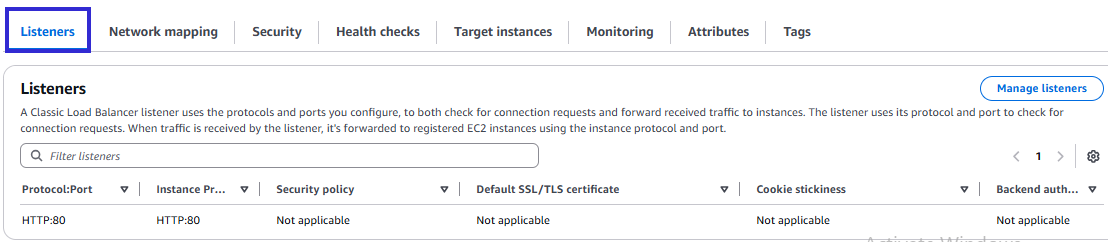

Go to the Listeners tab.
Check the SSL Certificate column.
Ensure the certificate ARN starts with:
arn:aws:acm:<region>:<account-id>:certificate/
Pass: If the certificate is managed by ACM.
Fail: If the certificate is uploaded manually and starts with:
arn:aws:iam::<account-id>:server-certificate/
Using AWS CLI:
List Classic Load Balancers:
aws elb describe-load-balancers --region <region> --query 'LoadBalancerDescriptions[*].[LoadBalancerName]' --output table Check SSL Listeners and Certificate Source:
aws elb describe-load-balancers --region <region> --query 'LoadBalancerDescriptions[*].{Name:LoadBalancerName,Listeners:ListenerDescriptions[*].Listener}' --output jsonIdentify Listeners Using HTTPS/SSL:
In the command output, locate listeners using HTTPS (port 443) or SSL (port 443).
Check Certificate Source:
aws elb describe-load-balancer-listeners --load-balancer-name <clb-name> --region <region> --query 'ListenerDescriptions[*].Listener.{Protocol:Protocol,SSLCertificateId:SSLCertificateId}'Expected Output (Pass):
{
"Protocol": "HTTPS",
"SSLCertificateId": "arn:aws:acm:us-east-1:123456789012:certificate/abcd1234-abcd-1234-abcd-1234abcd1234"
}
Fail Output (Manual Certificate):
{
"Protocol": "HTTPS",
"SSLCertificateId": "arn:aws:iam::123456789012:server-certificate/my-ssl-cert"
}Implementation Steps:
Using AWS Console:
Sign in to the AWS Console.
Navigate to EC2 Dashboard → Load Balancers.

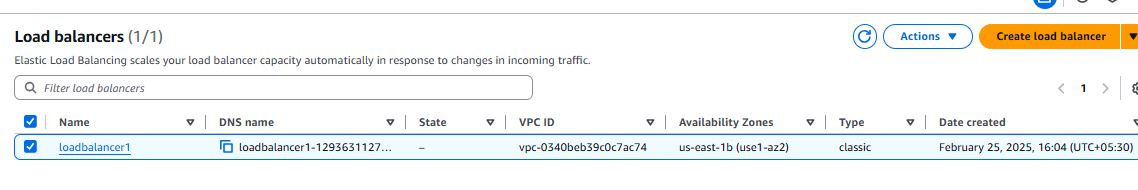

Select the Classic Load Balancer you want to modify.

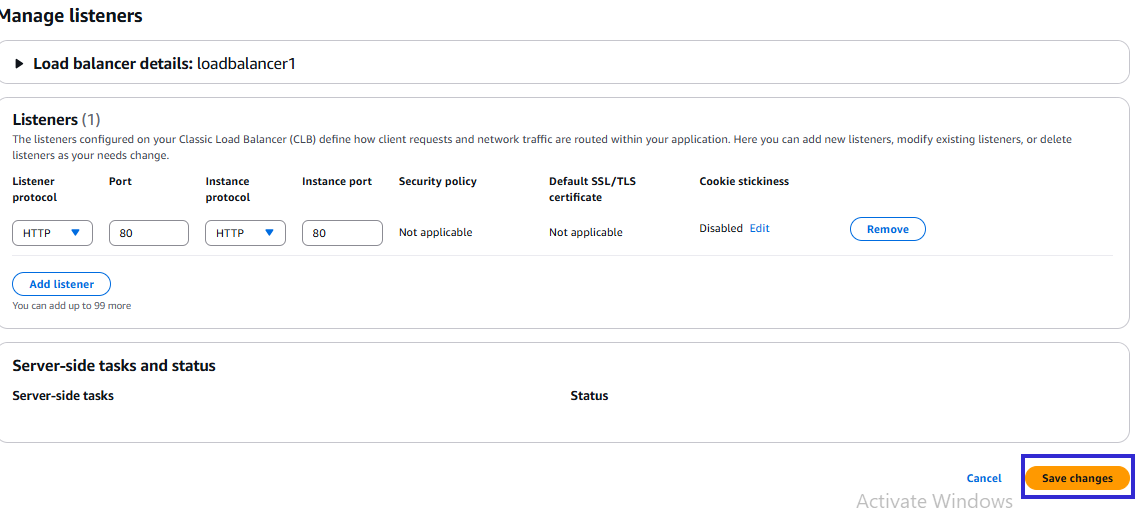

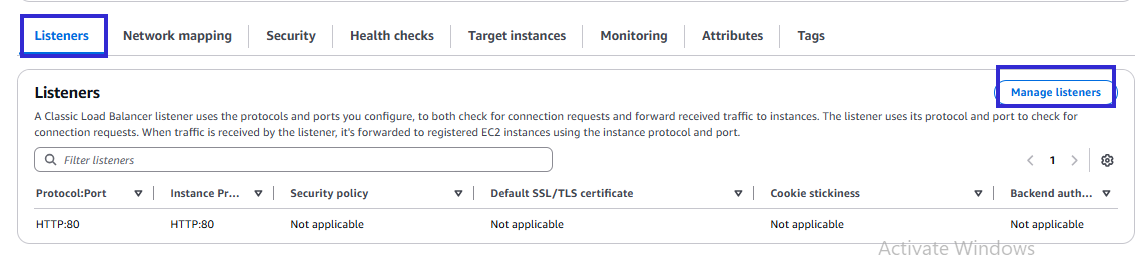

Go to the Listeners tab.
For each HTTPS/SSL listener:
Click Edit on the listener.
Choose Change SSL Certificate.
Select an ACM-managed certificate from the dropdown or Request a New ACM Certificate.
Apply changes.
Test the updated listener to ensure proper SSL/TLS functionality.
Using AWS CLI:
Request or Import ACM Certificate (if needed):
aws acm request-certificate --domain-name example.com --validation-method DNS --region <region>
Update Classic Load Balancer Listener with ACM Certificate:
aws elb set-load-balancer-listener-ssl-certificate --load-balancer-name <clb-name> --load-balancer-port 443 --ssl-certificate-id arn:aws:acm:<region>:<account-id>:certificate/<certificate-id>
Verify Listener Update:
aws elb describe-load-balancer-listeners --load-balancer-name <clb-name> --region <region> --query 'ListenerDescriptions[*].Listener.{Protocol:Protocol,SSLCertificateId:SSLCertificateId}'Backout Plan:
If switching to an ACM certificate causes issues:
Using AWS Console:
Navigate to EC2 Dashboard → Load Balancers.
Select the Classic Load Balancer.
In the Listeners tab, click Edit on the HTTPS/SSL listener.
Revert to the previously used IAM certificate.
Save changes.
Using AWS CLI:
aws elb set-load-balancer-listener-ssl-certificate --load-balancer-name <clb-name> --load-balancer-port 443 --ssl-certificate-id arn:aws:iam::<account-id>:server-certificate/old-cert
