Profile Applicability:
Level 1
Description:
Amazon Redshift is a fully managed data warehouse service that provides fast query performance on large datasets. One of its key features is the ability to deploy clusters in a Multi-AZ (Availability Zone) configuration. Multi-AZ deployment provides higher availability and fault tolerance by automatically replicating data across multiple Availability Zones within the same AWS region.
By enabling Multi-AZ deployment for Amazon Redshift clusters, you ensure that your data warehouse remains highly available, even in the event of an Availability Zone failure. This feature is particularly important for production workloads that require high availability and minimal downtime.
Rationale:
High Availability: Multi-AZ ensures that Redshift clusters remain available even in the event of a failure in one Availability Zone. This minimizes downtime and protects against single points of failure.
Automatic Failover: If one AZ fails, the Redshift cluster will automatically failover to the other AZ, providing seamless recovery without user intervention.
Data Durability: Data is replicated between AZs, which reduces the risk of data loss during unexpected failures.
Compliance: Multi-AZ configurations are often required for high availability and fault tolerance in compliance frameworks such as SOC 2, HIPAA, and PCI-DSS.
Impact:
Pros:
Improved Availability: Ensures high availability of data warehouse clusters in case of AZ failures.
Automatic Failover: Reduces the need for manual intervention when recovering from failures.
Data Resilience: Enhanced data durability through automatic data replication between AZs.
Meets Compliance Requirements: Many regulatory standards require high availability and fault tolerance.
Cons:
Cost: Multi-AZ deployments incur additional costs due to the replication of data across Availability Zones.
Performance Overhead: While minimal, the additional data replication might cause a slight impact on performance.
Complexity: Managing and monitoring Multi-AZ deployments requires attention to detail in both the setup and ongoing operations.
Default Value:
By default, Amazon Redshift clusters are deployed in a single Availability Zone. Multi-AZ deployment is a feature that must be explicitly enabled when creating or modifying a Redshift cluster.
Pre-requisite:
AWS IAM Permissions:
redshift:DescribeClusters
redshift:ModifyCluster
ec2:DescribeAvailabilityZones
AWS CLI installed and configured.
Amazon Redshift Cluster setup with at least one available Availability Zone.
AWS VPC should have more than one Availability Zone available in the region.
Redshift Cluster should be running in a region that supports Multi-AZ deployments.
Remediation:
Test Plan:
Using AWS Console:
Sign in to the AWS Management Console.
Navigate to Amazon Redshift under Services.
In the Redshift Dashboard, select the cluster you want to check.

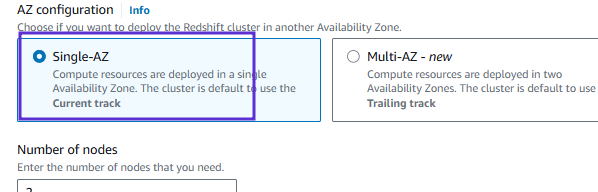

Under the Properties section, check the Availability Zone settings.
If Multi-AZ is enabled, it will show that the cluster is deployed across two AZs.
If Multi-AZ is disabled, it will show that the cluster is deployed in a single AZ.

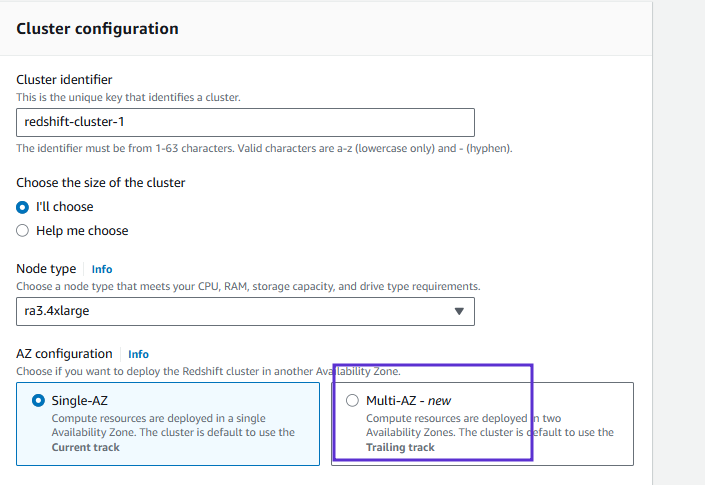

To enable Multi-AZ deployment, click Modify Cluster, select the Multi-AZ option, and apply the changes.
Verify that the cluster is now using multiple Availability Zones for deployment.
Using AWS CLI:
To check if Multi-AZ is enabled for a Redshift cluster, run:
aws redshift describe-clusters --query 'Clusters[*].{ClusterId:ClusterIdentifier,MultiAZ:AvailabilityZone}'To enable Multi-AZ for an existing Redshift cluster, run:
aws redshift modify-cluster --cluster-identifier <cluster-id> --multi-az
To confirm the Multi-AZ status of the cluster:
aws redshift describe-clusters --cluster-identifier <cluster-id> --query 'Clusters[*].{ClusterId:ClusterIdentifier,AvailabilityZone}'Implementation Steps:
Using AWS Console:
Log in to the AWS Management Console and navigate to Amazon Redshift.
In the Redshift Dashboard, select the cluster you want to check.
Under the Cluster Properties section, look for the Availability Zone field:
If Multi-AZ is enabled, the cluster should be deployed in multiple Availability Zones.
If not enabled, click Modify to change the configuration.

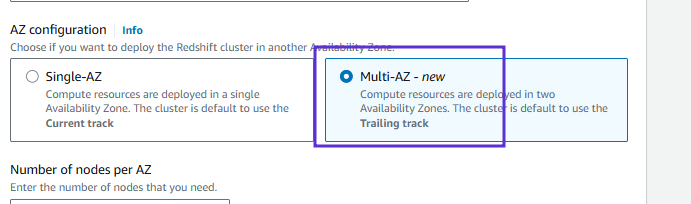

Enable Multi-AZ by selecting the appropriate option and confirming the Availability Zones for deployment.
Save the changes, and the cluster will be modified to use Multi-AZ deployment. The cluster will go through a restart process to apply the changes.
Using AWS CLI:
To modify a Redshift cluster to enable Multi-AZ deployment:
aws redshift modify-cluster --cluster-identifier <cluster-id> --multi-az
To verify the cluster is using multiple Availability Zones:
aws redshift describe-clusters --cluster-identifier <cluster-id> --query 'Clusters[*].{ClusterId:ClusterIdentifier,AvailabilityZone}'Backout Plan:
Console Process
Go to the Amazon Redshift Console:
Open the Amazon Redshift console.
Select your cluster from the list.
Check Multi-AZ Setting:
In the cluster details, look for the Multi-AZ configuration under the cluster properties.
CLI Process
Describe the Cluster:
aws redshift describe-clusters --cluster-identifier <cluster-name>
Check the Output:
Look for the MultiAZ field in the output. If it says true, Multi-AZ is enabled.
Note:
Test in Staging: Before applying Multi-AZ to production clusters, it’s advisable to test it in a development or staging environment to ensure proper configuration and minimize any performance issues.
Monitoring: Set up CloudWatch monitoring and CloudWatch Alarms to keep track of the performance of your Redshift cluster and detect any failures or performance degradation when enabling Multi-AZ.
